Terminal Blocks are suitable for all control and power distribution applications. These are the connector which allows more than one circuit to connect to another circuit.

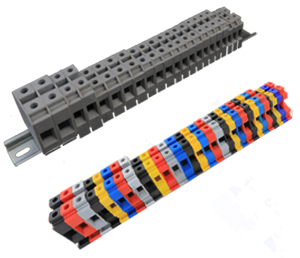

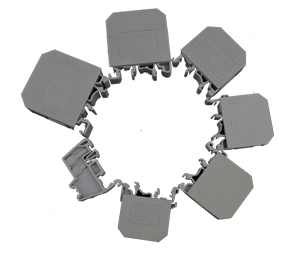

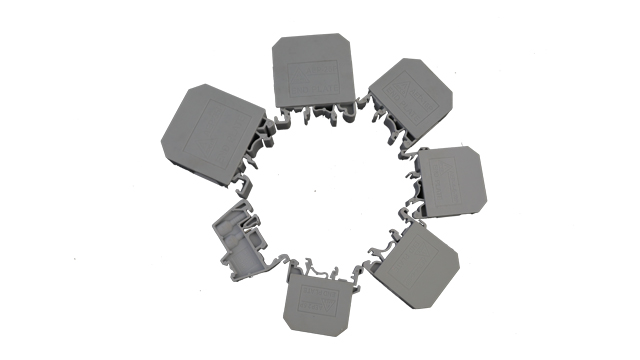

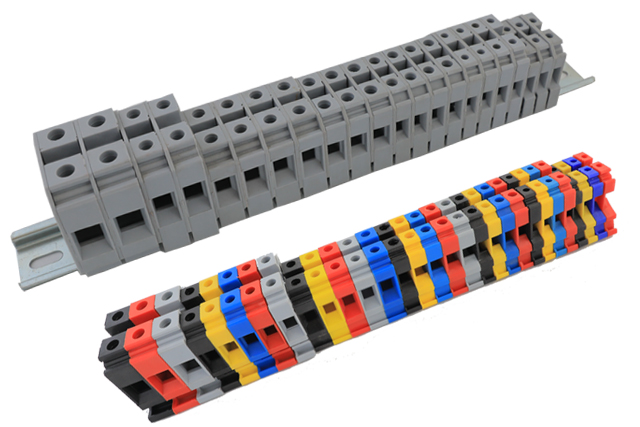

Apco Control Devices has expand its footprints by adding complete range of feed through terminal-screw clamp in its product line. The product is one of the types of Terminal Blocks also known as Clip on Terminals. The raw material used in manufacturing Clip on Terminal is Polymide 66 ranging from 24 amp to 125 amp. The product is also available in different colours.
The engineers have designed flexible foot to lock or unlock the terminal from the channel with the help of screw driver. These Clip on Terminals are having tag holding area on both right and left side for ease of identification.
Technical data:
- Rated voltage from 800V to 1000V
- Rated current from 24A to 125A
- Insulated material is nylon 66

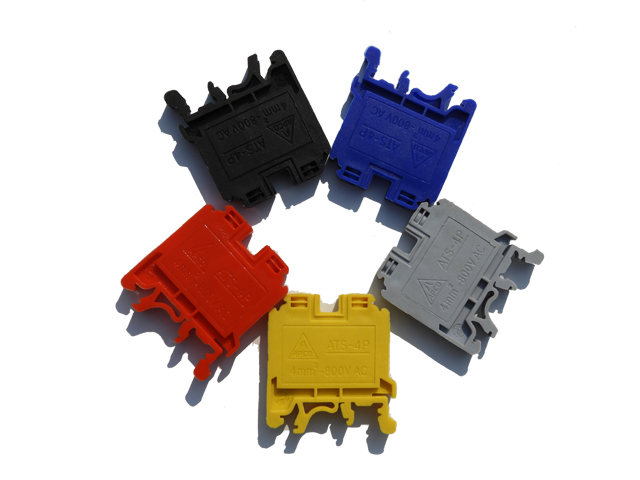

- Available in colours- red, yellow, grey, blue, black
- Feed through function
- MCB channel mounted
